Reducer

Brand Name : DEMAR / OEM

Model Number : 1/4' to 6'

Certification : ISO , PED

Place of Origin : CHINA

MOQ : 1pcs

Price : RMB50-300/M

Supply Ability : 200pcs / Day

Delivery Time : 10-15 Days

Packaging Details : packed in plywood boxes,individual packing of each tube is polyethylene

Material : 304L/316L/C22/C276

Contact Now

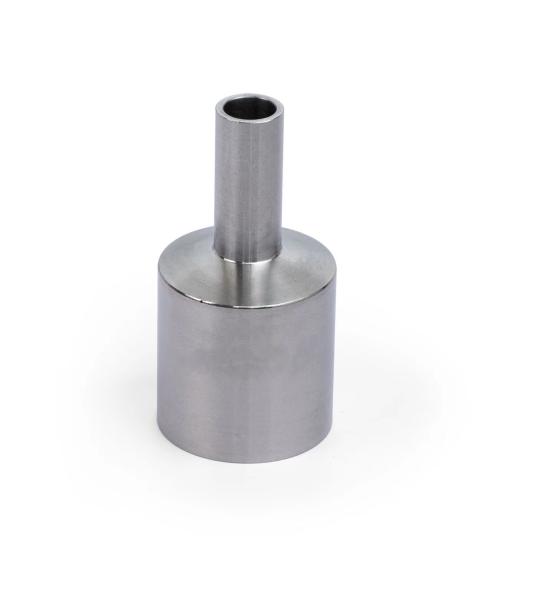

Reducer

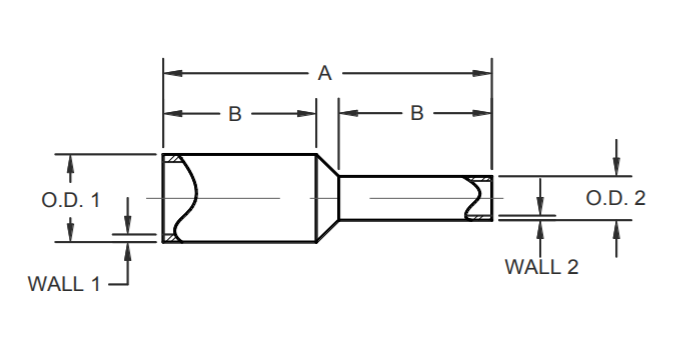

Dimensions
Size O.D. 1(mm) Wall 1 (mm) O.D. 2(mm) Wall 2 (mm) A (mm) B (mm)
3/8" x 1/4" 9.53 0.89 6.35 0.89 69.9 34.1
1/2" x 1/4" 12.7 1.24 6.35 0.89 69.9 33.4
1/2" x 3/8" 12.7 1.24 9.53 0.89 69.9 34.1
3/4" x 1/4" 19.1 1.65 6.36 0.89 69.9 31.8
3/4" x 3/8" 19.1 1.65 9.53 0.89 69.9 32.5
3/4" x 1/2" 19.1 1.65 12.7 1.24 69.9 33.4
1" x 3/8" 25.4 1.65 9.53 0.89 76.2 34.1
1" x 1/2" 25.4 1.65 12.7 1.24 76.2 34.9
1" x 3/4" 25.4 1.65 19.1 1.65 76.2 36.5
1 1/2" x 1/2" 38.1 1.65 12.7 1.24 133.4 60.3
1 1/2" x 3/4" 38.1 1.65 19.1 1.65 133.4 61.9
1 1/2" x 1" 38.1 1.65 25.4 1.65 133.4 63.5
2" x 3/4" 50.8 1.65 19.1 1.65 139.7 61.9
2" x 1" 50.8 1.65 25.4 1.65 139.7 63.5
2" x 1 1/2" 50.8 1.65 38.1 1.65 139.7 66.7
2 1/2" x 1" 63.5 1.65 25.4 1.65 146.1 63.5
2 1/2" x 1 1/2" 63.5 1.65 38.1 1.65 146.1 66.7
2 1/2" x 2" 63.5 1.65 50.8 1.65 146.1 69.9
3" x 1 1/2" 76.2 1.65 38.1 1.65 152.4 63.5
3" x 2" 76.2 1.65 50.8 1.65 152.4 66.7
3" x 2 1/2" 76.2 1.65 63.5 1.65 152.4 69.9
4" x 2" 101.6 2.11 50.8 1.65 165.1 69.9
4" x 2 1/2" 101.6 2.11 63.5 1.65 165.1 76.2
4" x 3" 101.6 2.11 76.2 1.65 165.1 76.2
6" x 2 1/2" 152.4 2.11 63.5 1.65 292.1 76.2
6" x 3" 152.4 2.11 76.2 1.65 292.1 76.2
6" x 4" 152.4 2.11 101.6 2.11 292.1 76.2
